Turing Lab

A Flutter-based toolkit for constructing, transforming, and simulating formal language models.

It provides dedicated workspaces for finite-state automata, context-free grammars, pushdown automata, Turing machines, regular expressions, and pumping lemma exercises.

Development status: Apple and Android builds are currently under testing.

View source Read documentation Report an issue

Finite-state automata simulation with an editable canvas and step-by-step execution trace — Finite-state automata simulation and execution trace.

01 / Capabilities

Supported models and workflows

The current scope is organized around six independent workspaces. File support and transformations vary by model.

Editing, simulation, transformation, and file capabilities by workspace
Workspace	Editing	Simulation	Transformations	Import/export
Finite-state automata	State and transition canvas	Step-by-step acceptance traces	NFA/DFA/regex conversion and DFA minimisation	JFLAP XML, JSON, SVG, and native PNG
Context-free grammars	Grammar and production editor	Parsing and validation	FIRST/FOLLOW analysis, LL(1) diagnostics, and CNF conversion	JFLAP grammar and SVG
Pushdown automata	State and transition canvas	Input and stack traces	Not applicable	SVG export
Turing machines	State and transition canvas	Tape and transition traces	Not applicable	SVG export
Regular expressions	Expression editor	Match testing and comparison	Simplification and automaton conversion	Not applicable
Pumping lemma	Guided case workflow	Decomposition validation	Not applicable	Not applicable

Finite automata

Finite-state workflows include conversion between nondeterministic and deterministic automata, regular-expression conversion, DFA minimisation, and acceptance traces.

Grammar analysis

Grammar tooling provides parsing diagnostics, FIRST and FOLLOW sets, LL(1) conflict reporting, and a best-effort Chomsky normal form pipeline.

Execution traces

FSA, PDA, and TM simulations expose intermediate configurations through state, transition, stack, or tape traces appropriate to each model.

02 / Data and formats

Local execution and bounded file compatibility

Turing Lab does not require an account or a developer-operated backend. Editing, simulation, diagnostics, and bundled examples run locally.

Read the privacy policy or inspect the repository's data-flow documentation.

FSA: JFLAP XML and JSON import/export, SVG export, and PNG export on native platforms.
Grammar: JFLAP grammar import/export and SVG export.
PDA and TM: SVG export. JFLAP XML and JSON round trips are outside the current release scope.
Web limitation: PNG export is unavailable in web builds.

03 / Platforms

Current validation status

Testing builds are undergoing platform validation and release preparation. Experimental targets may have incomplete platform integration and are not part of the current release scope.

Platform validation status
Platform	Status
iOS and iPadOS	Testing
macOS	Testing
Android	Testing
Web	Experimental
Windows	Experimental
Linux	Experimental

04 / Interface

Application workspaces

Captured from controlled mobile and tablet testing configurations.

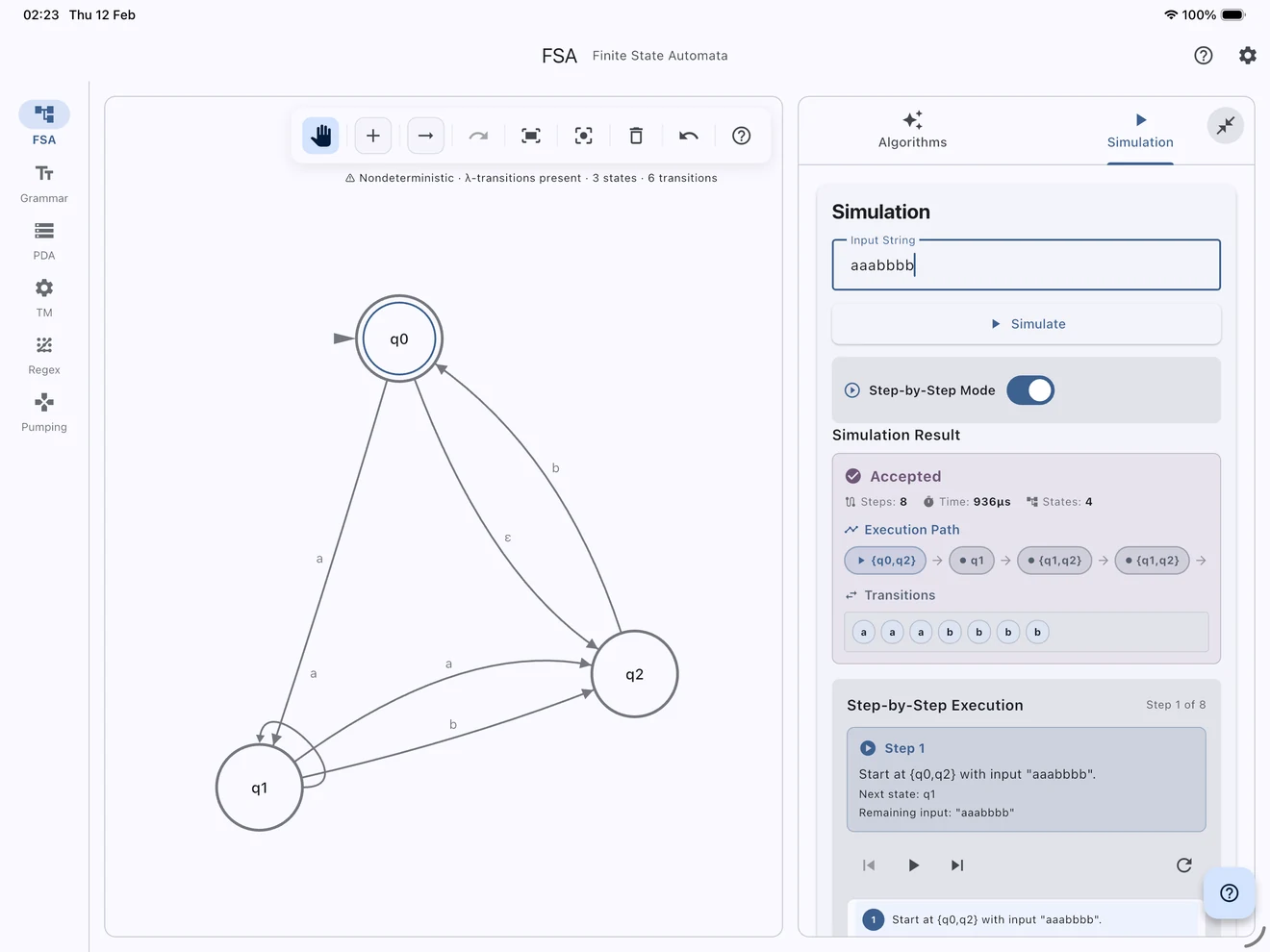

Finite-state automata simulation showing the canvas, accepted input, and execution trace — **Finite-state automata.** Automaton canvas, simulation result, and step-by-step trace.

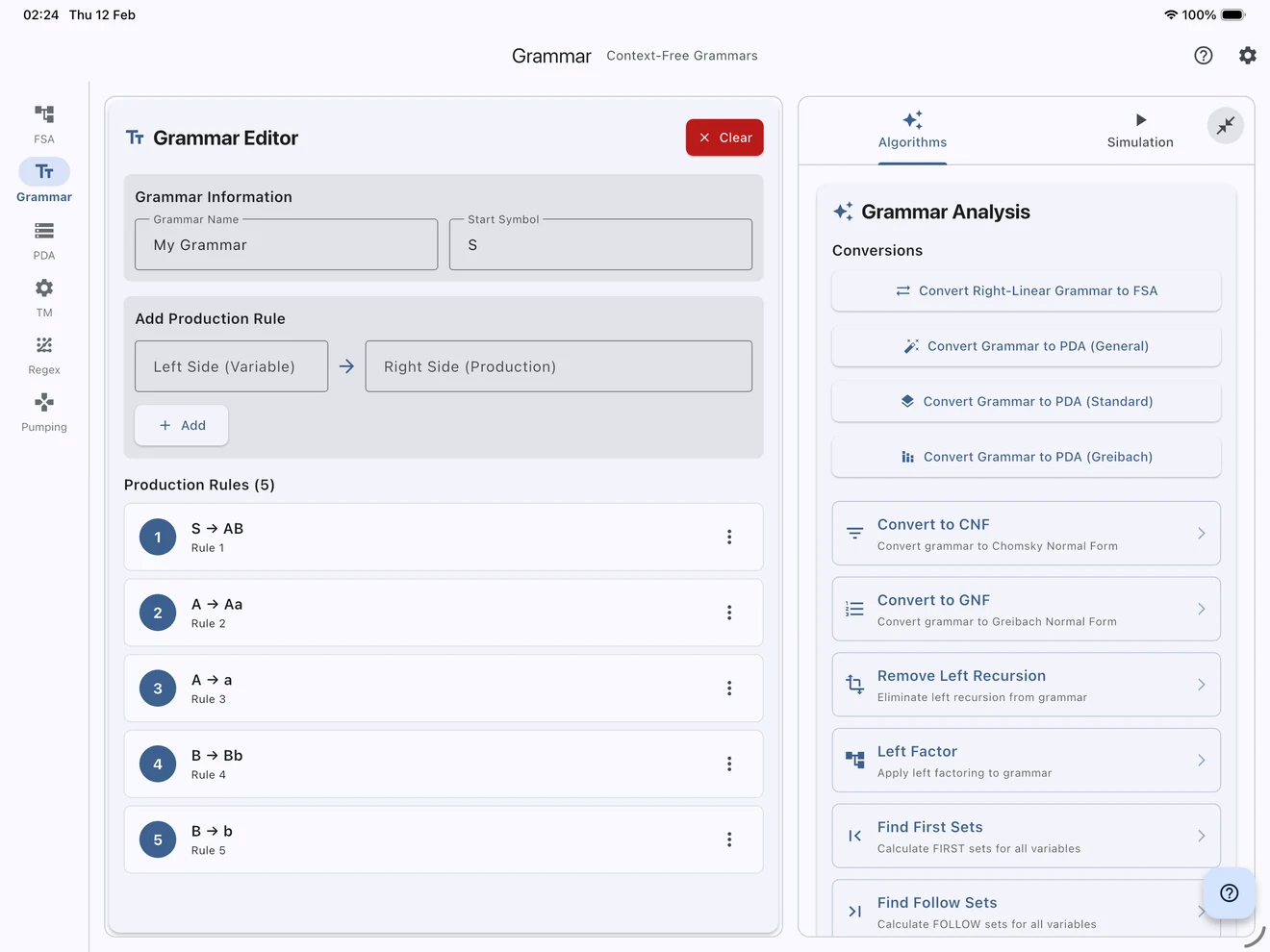

Context-free grammar editor with production rules and transformation controls — **Context-free grammars.** Production editing and grammar transformations.

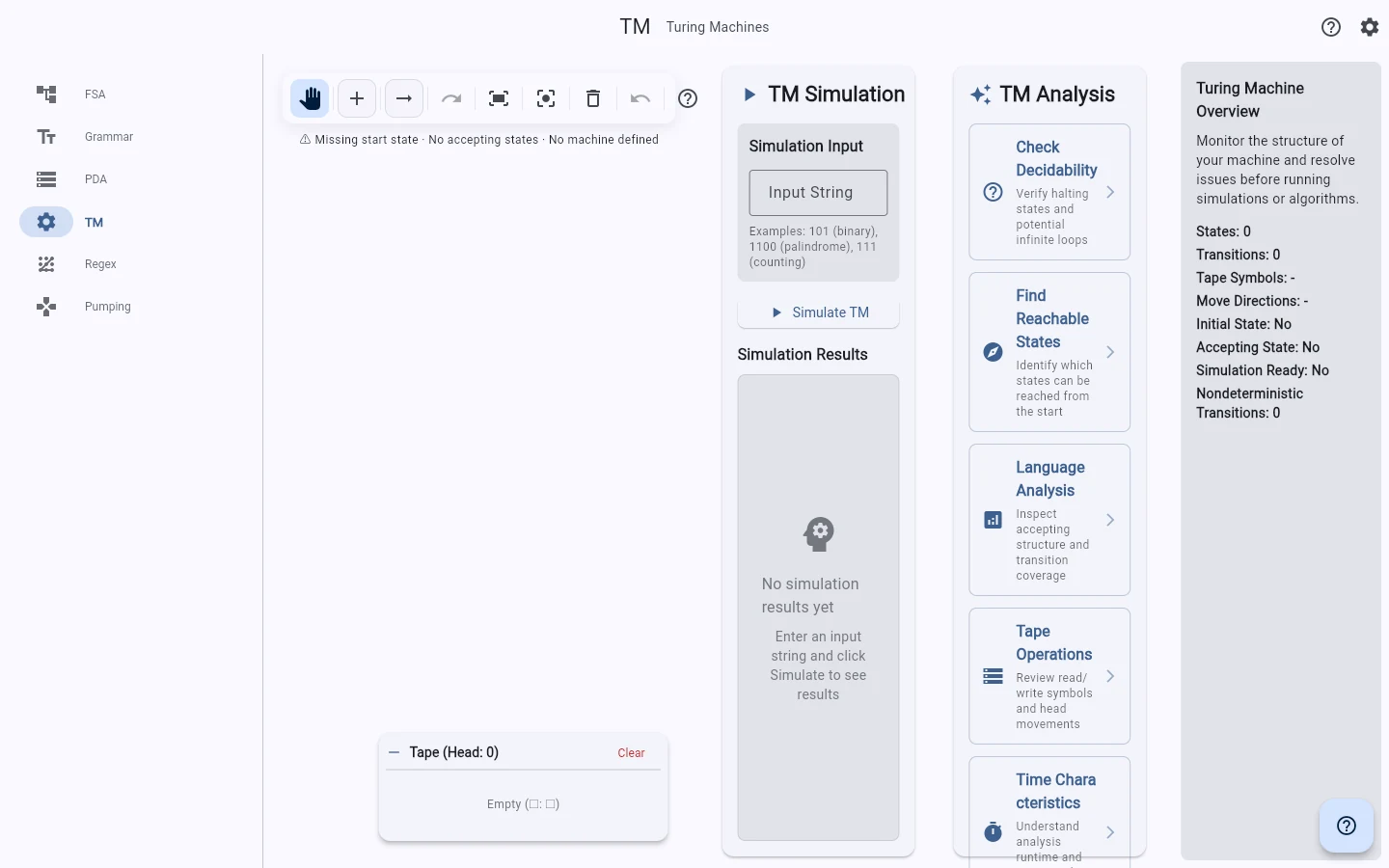

Turing machine workspace with tape simulation and machine analysis controls — **Turing machines.** Tape simulation, transition editing, and machine-specific analysis.
